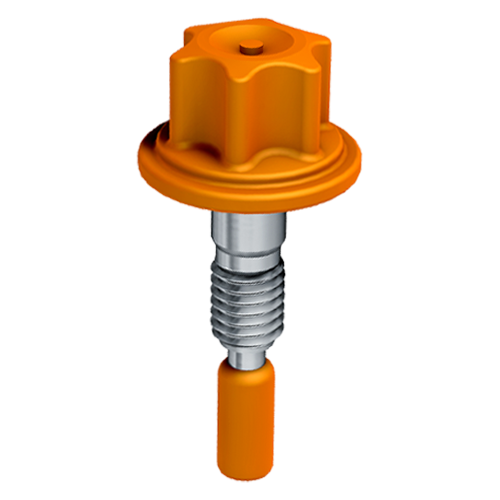

EJOT Insulated Fasteners

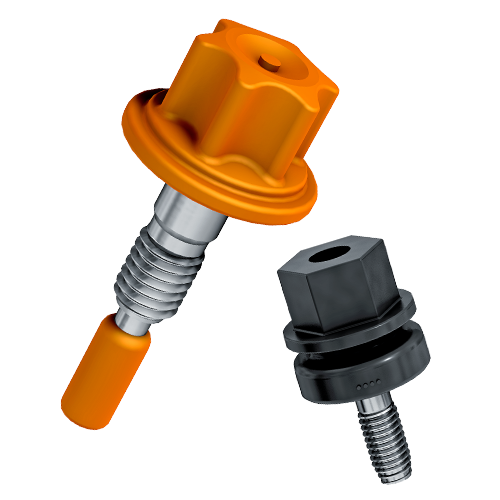

IND-Produktbilder-InsulatedScrew-SpaceHolder-EJOT2

Specification

Overview
- Insulated high-voltage connector
- 100% electrical high-voltage test (dielectric strength)
- Flame-retardant overmolding according V0 possible
- Defined packaging concept for automated picking of individual parts
- Customized article design possible
- Support with article design (design, mechanical properties, etc.) possible

Downloads

EJOT_EJOSYST_Insulated_Screw_Flyer_12.22_en.pdf 450 KB

Hotline

Applications Engineer

hotline@ejot.com
+49 2751 529-123

CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT^®, SHEETtracs^® and ALtracs^® Plus.

Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.

CAD & more

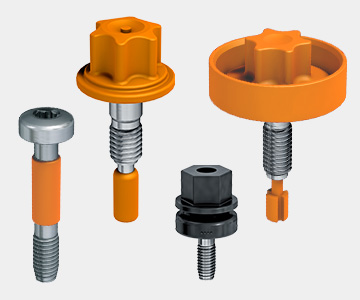

VOLTtec® Insulated Fasteners

Insulated fasteners from EJOT combine the proven process technologies from the production of reliable cold formed fasteners with fully automated and 100% electrically tested injection molding processes. Thereby we support our customers in the optimal design of the connection regarding fastening but also the insulation function.
